Turnover boxes play a very important role in the production line. Turnover boxes are widely used in multiple links such as material transportation, storage, loading and unloading, sorting, etc., and are an indispensable logistics tool in the production line of enterprises.
Enterprises will produce a lot of oil, dust and so on in the process of using turnover boxes. Therefore, the cleaning of the turnover box becomes particularly important. In the production process, the cleaning of the turnover box requires a lot of manpower and material resources from the enterprise. However, due to the serious oil pollution in the cleaning process, there are still many sanitary corners, so manual cleaning still has the problems of unclean cleaning and low cleaning efficiency. The turnover box cleaning machine can effectively solve this problem. It is suitable for food factories, central kitchens, cooked food, baking, fast food, meat factories, logistics, aquatic products, food processing and other industries.

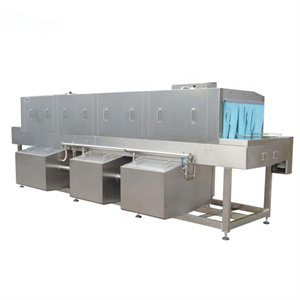

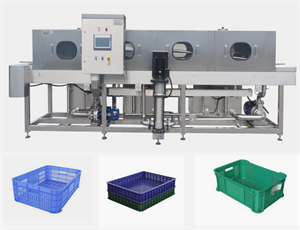

The turnover box cleaning machine uses intelligent control of steam heating, high temperature and high pressure sterilization and cleaning, and pumps the heated water in the water tank into the spray pipe of the machine at high speed through the water pump, and sprays it through the nozzle installed on the spray pipe to form a high-pressure water spray On the turnover box, the dirt on the turnover box is washed away from the surface of the turnover box by high-pressure and high-temperature water. The cleaning system consists of a pre-cleaning section, a high-pressure cleaning section, a rinsing section, and a clean water spraying section.
Advantages of turnover box cleaning machine compared with traditional cleaning methods：
1. Recycling of washing water in turnover box washing machine
The washing water in the first three stages of the turnover box washing machine is continuously filtered, so it can be recycled. Significant water savings are achieved in the process. For the gradual use of recycled water in the cleaning process, the first three stages mainly use circulating water for washing, which saves efficiency and water resources at the same time, and the last stage is rinsed with clean water to make the cleaning cleaner.
2. Lower energy consumption
The liquid level and water temperature of the water tank are automatically controlled, and the cold and hot water are proportioned according to the design water temperature through the solenoid valve to reach the set temperature of 82 degrees Celsius or 95 degrees Celsius to minimize energy consumption. Two independent water tanks, the temperature can reach 82-95 ℃, effective sterilization.
3. Frequency Regulator
The unique ring-type track design and double-track operation make the turnover box run more smoothly. Plate limit side rails can be flexibly adjusted. The turnover box cleaning machine is chain conveyed. The speed of the chain conveying can be adjusted. For crates that are only slightly soiled, the speed of the chain conveyor can be increased by allowing the crates to complete the cleaning process faster, so less energy is required per tote washer.
4.Hygienic design
The crate washer itself also needs to be kept clean. By using food-grade 304 stainless steel and “tilted” design so that there will be no water left on the turnover box washing machine, the machine can be cleaned quickly and effectively. The shell design door-type built-in lock structure can be disassembled independently for easy cleaning. The arc-shaped design of the bottom of the water tank is easy to clean.
